Product Description
Wood Dust Collector is an apt solution for different industrial processes. It can remove airborne pollutants in the sort of fumes, vapors, dry particles, or fog. Removal of all toxic contamination is ensured. This is apt to be used at unsafe work environment. Also, it is functional as an appropriate industrial air purifying system, which can solve all air quality issues. Wood Dust Collector is popular as an economical air pollution control solution. This is suited for a wide variety of industrial mist collection as well as dust collection applications. Its filter is provided with chains and coupling, which enable effortless removal.
Applications :
1) Applicable for Abrasive Blasting, Carbon Black, Cement, Chemicals, CNC Machining etc.
2) Also suited for Coal-Fired Boilers, Cold Heading, Die Casting, Food Processing, Metalworking, Pharmaceutical etc.
3) Suited for Plasma and Laser Cutting, Plastics Processing, Powder Plant, Utility etc.
4) Apt for Waste-to-Energy, Welding, Woodworking, Custom or OEM applications.
WOOD DUST COLLECTOR:-

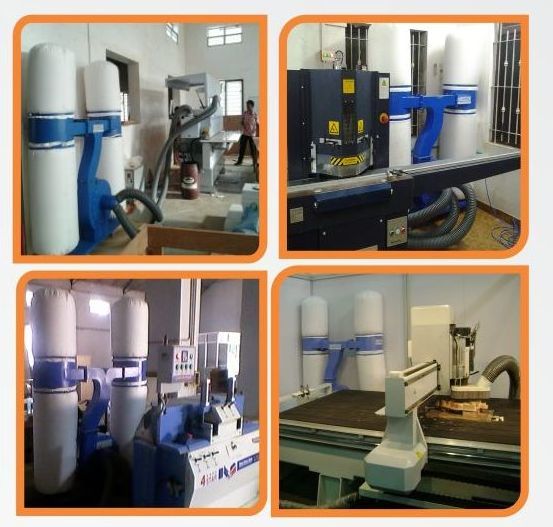

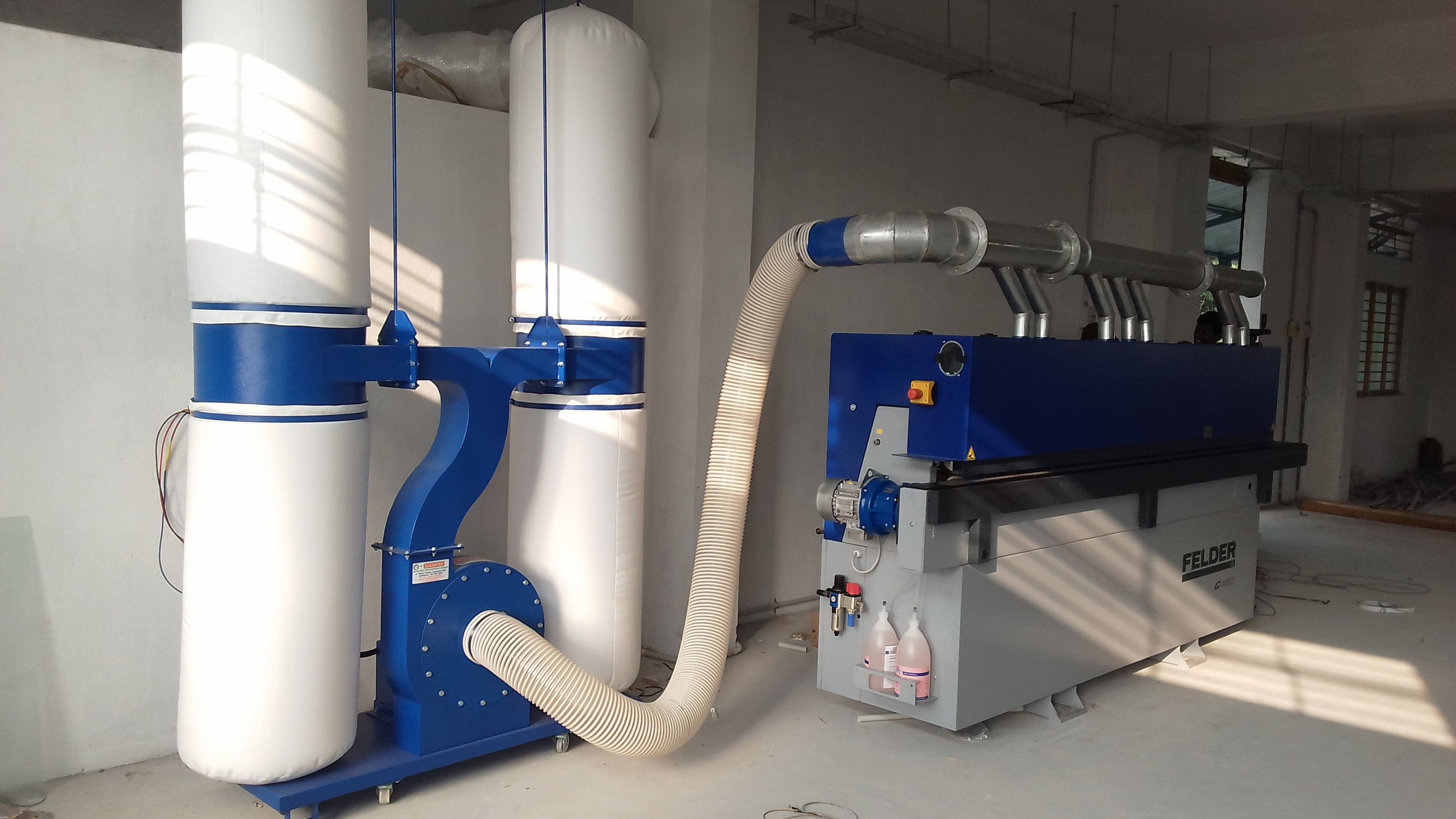

CLEANTEK manufacturing wood dust collector for CNC router machine, edge banding machine , wood working machine etc...
Technical Specifications:
| PARAMETERS | DCWD100 | DCWD200 | DCWD300 | DCWD500 | DCWD700 | DCWD1000 | DCWD1500 |
| HP | 1 | 2 | 3 | 5 | 7 | 10 | 15 |
| Volts/Hz | 415/50 | 415/50 | 415/50 | 415/50 | 415/50 | 415/50 | 415/50 |
| Airflow in m3/Hr | 1100 | 1850 | 2200 | 3200 | 6000 | 7500 | 10000 |
| Speed in RPM | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 |
| Suction inlet size in mm | 100 | 125 | 150 | 200 | 300 | 350 | 400 |
| Number of Filter Bag | 1 Pair | 2 Pair | 2 Pair | 2 Pair | 4 Pair | 4 pair | 4 pair |
| Suction inlet mm | Ø 100 | Ø 100 | 2 X Ø 100 | 4 X Ø 100 | 4 X Ø 100 | 4 X Ø 100 | 4 X Ø 100 |
| Type of motor | Flange Mounted | Bed Mounted | Bed Mounted | Bed Mounted | Bed Mounted | Bed Mounted | Bed Mounted |
| Motor Protection | IP55 | IP55 | IP55 | IP55 | IP55 | IP55 | IP55 |
| Weight in kg | 35 | 40 | 50 | 175 | 350 | 375 | 375 |
| Overall Size L X W X H in mm | 1000 X 500 X 1305 | 1502 X 645 X 1358 | 1568 X 655 X 1486 | 1658X 658 X 1515 | 2400 X 1200 X 2510 | 2400 X 1200 X 2510 | 2500 X 1300 X 2510 |
| Insulation class | F | F | F | F | F | F | F |
